Flying Track System
The stage flying system is designed to move a performer or stage prop in two planes: vertically and horizontally.

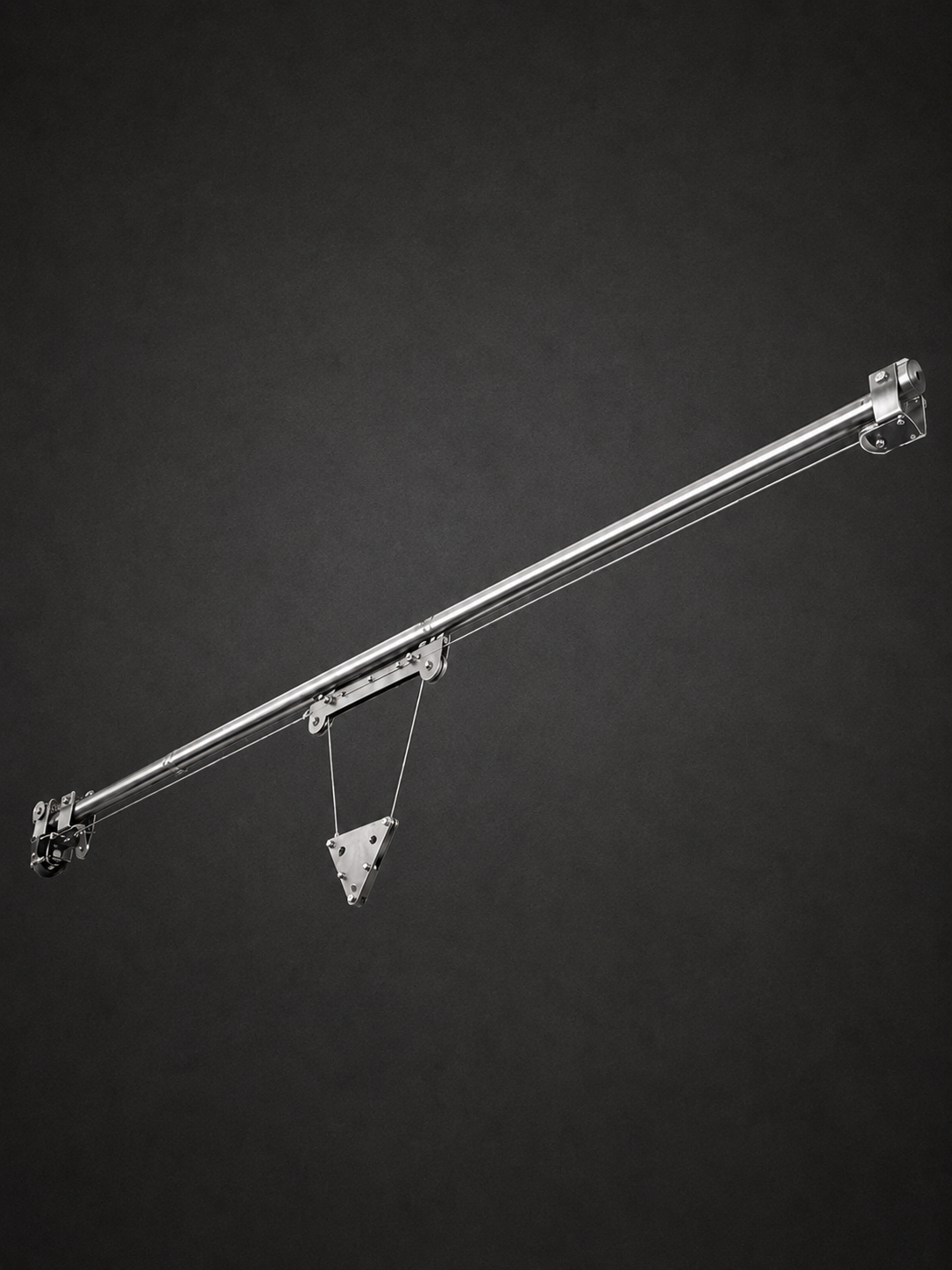

The system is based on a robust steel rail along which a specially designed carriage equipped with wire-rope sheaves travels. The rail is attached to a load-bearing stage truss using textile round slings. Once installed, the truss and the complete system are raised to the required working height.
Horizontal movement is achieved by an electric motor mounted on the rail, which drives the carriage along the track. Vertical movement is provided by a lifting winch and a system of wire-rope sheaves. The simultaneous operation of both mechanisms makes it possible to perform smooth flights, diagonal movements and complex combined trajectories.
The system is suitable for circus productions, concert venues, theatrical performances, festivals and other events requiring controlled movement of performers or stage props through space.
- Availability
- Made to order
Specifications
- Load capacity
- 200 kg
- Horizontal travel speed
- 0.5 m/s
- Vertical travel range
- 10 m
- Horizontal travel range
- 20 m
- Power supply
- 220 V, 10 A
Package contents
- The winch for vertical lifting is NOT included!
- rail sections with a total length of 22 m;
- horizontal drive control unit;
- 30 m motor power cable;
- 5 m control unit power cable with a Schuko plug (standard household plug), 220 V;
- control pendant with a 5 m cable;
- 4.1 mm wire rope for horizontal movement — 25 m;
- 5.6 mm wire rope for vertical movement — 45 m.
